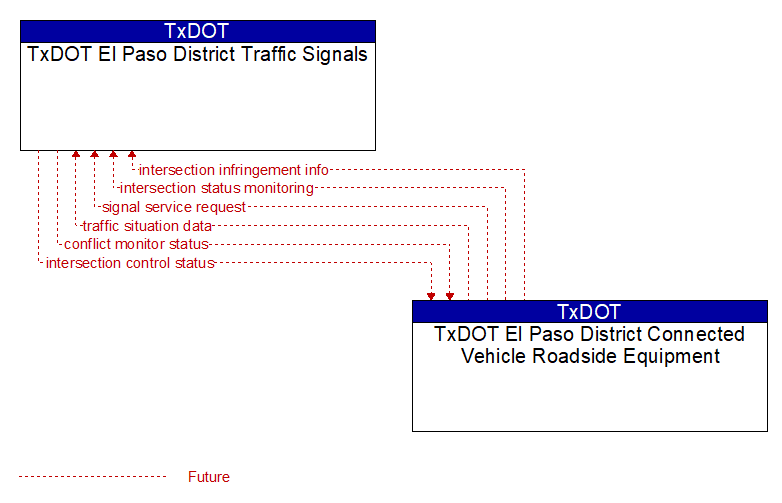

Architecture Flow Definitions

conflict monitor status  (Future)  Applicable ITS Standards

A control flow that supports failsafe operation in the event that a conflict is detected that requires the RSE to enter a failsafe operating mode.

intersection control status  (Future)  Applicable ITS Standards

Status data provided by the traffic signal controller including phase information, alarm status, and priority/preempt status.

intersection infringement info  (Future)  Applicable ITS Standards

Vehicle path information sent by a vehicle that is violating the stop bar at an intersection. This flow includes the vehicle's position, heading, speed, acceleration, transmission, steering–wheel angle, braking status, size information and trajectory.

intersection status monitoring  (Future)  Applicable ITS Standards

Current signal phase and timing information for all lanes at a signalized intersection. This flow represents monitoring of communications by a receiver at the intersection to support monitoring for conflicts between actual signal states and RSE communications about those states.

signal service request  (Future)  Applicable ITS Standards

A call for service or extension for a signal control phase that is issued by the RSE for connected vehicles approaching an intersection and/or pedestrians at a crosswalk. This flow identifies the desired phase and service time.

traffic situation data  (Future)  Applicable ITS Standards

Current, aggregate traffic data collected from connected vehicles that can be used to supplement or replace information collected by roadside traffic detectors. It includes raw and/or processed reported vehicle speeds, counts, and other derived measures. Raw and/or filtered vehicle control events may also be included to support incident detection.
