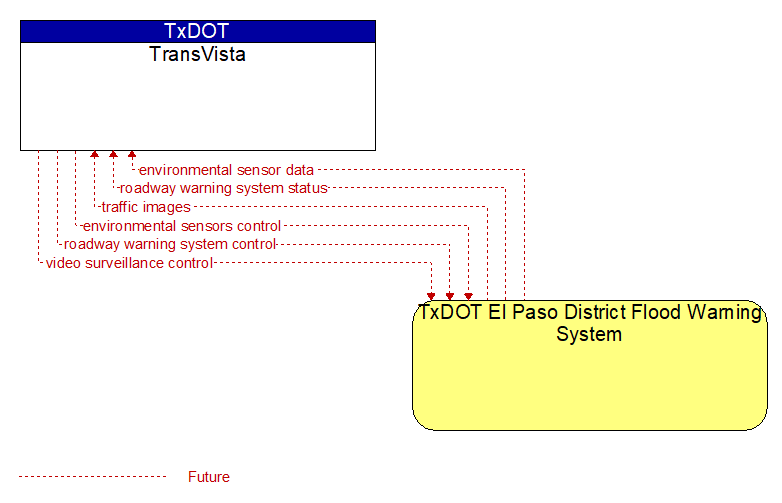

Architecture Flow Definitions

environmental sensor data  (Future)  Applicable ITS Standards

Current road conditions (e.g., surface temperature, subsurface temperature, moisture, icing, treatment status) and surface weather conditions (e.g., air temperature, wind speed, precipitation, visibility) as measured and reported by fixed and/or mobile environmental sensors. Operational status of the sensors is also included.

environmental sensors control  (Future)  Applicable ITS Standards

Data used to configure and control environmental sensors.

roadway warning system control  (Future)  Applicable ITS Standards

Information used to configure and control roadway warning systems.

roadway warning system status  (Future)  Applicable ITS Standards

Current operating status of roadway warning systems.

traffic images  (Future)  Applicable ITS Standards

High fidelity, real–time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images and meta data that describes the images.

video surveillance control  (Future)  Applicable ITS Standards

Information used to configure and control video surveillance systems.
